PVDF Syringe Filters, 0.45um, 30mm, Luer-Lok/Luer Slip, Nonsterile, 100/Pk SKU: SF15617

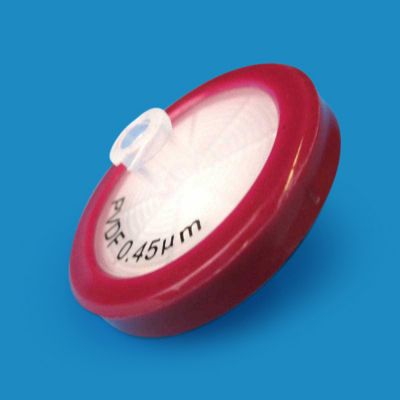

Polyvinylidene Fluoride (PVDF) Syringe Filters - SF15617

Pharmaceutical and analytical laboratories demand clarification technology capable of processing high-volume organic samples. Chemical resistance must withstand aggressive solvents while maintaining efficient flow rates. Advanced polyvinylidene fluoride membrane technology with 0.45 µm pore size delivers reliable particulate removal. It functions across diverse solvent systems through hydrophobic surface chemistry. The 30mm diameter configuration features a 4.9 cm² filtration area. It enables efficient clarification of volumes exceeding 100 ml. The design suits manufacturing and analytical testing applications requiring high-throughput processing.

Key PVDF Membrane Characteristics

• Hydrophobic nature requires pre-wetting with alcohols or compatible organic solvents before aqueous filtration, optimizing performance for HPLC mobile phase clarification
• 0.45 µm pore size removes particulates from analytical samples for chromatography applications, protecting downstream instrumentation without providing sterile-grade filtration
• Exceptional chemical resistance ensures stable operation with aggressive organic solvents, including chlorinated compounds, ketones, esters, and aromatic hydrocarbons
• Naturally hydrophobic surface enables air and gas venting applications, efficiently displacing air from liquid handling systems where hydrophilic membranes would block gas passage
• Rapid throughput with a 39 ml/min flow rate reduces processing time for high-volume samples, improving workflow efficiency in manufacturing environments

Key Construction Characteristics

• 100 µL holdup volume minimizes loss of valuable pharmaceutical compounds and analytical standards, maximizing recovery for high-volume clarification applications
• Polypropylene housing construction provides structural integrity to 87 psi maximum operating pressure, delivering reliable performance for pressurized filtration systems
• Dual Luer-Lok and Luer-Slip connections integrate seamlessly with standard laboratory syringes without adapters, streamlining workflow integration into existing equipment
• Integrated polypropylene prefilter extends membrane lifetime by capturing coarse particulates upstream, reducing filter consumption in high-particulate sample environments

Laboratories processing high-volume organic samples require specific clarification technology. It must combine chemical resistance with efficient particulate removal and rapid throughput. PVDF syringe filters deliver 0.45 µm clarification performance with broad solvent compatibility. The membrane technology provides workflow efficiency through validated chemical stability. Large filtration area supports high-volume processing. Integrated prefilter protection aids chromatography preparation and quality control applications.

For more information about chemical and material compatibility, please review our Chemical Compatibility Chart.

Bubble Point (psi)

5.8psi

Connection Type

Luer-Lok/Luer Slip

Diameter

30mm

Filtration Area

4.9cm²

Flow Rate

39ml

Holdup Volume

100μL

Material

Polyvinylidene Fluoride (PVDF)

Maximum Operating Pressure

87psi

Maximum Operating Temperature (°C)

60°C

Membrane Thickness (µm)

100-130μm

Pack Count

100

Pore Size (µm)

0.45

Prefilter (Yes/No)

Yes

Prefilter Material

PP

Sterility

Nonsterile

Sterilization

Autoclave at 121°C for 30min/ gamma 25kGy

Volume Throughput (ml)

110ml

Weight

0.91

Wetability

Hydrophobic

• HPLC Mobile Phase Clarification - Removes particles from organic and aqueous chromatography solvents, preventing column fouling in analysis
• LC-MS Sample Preparation - Clarifies analytical samples in organic solvents before mass spectrometry analysis for compound identification
• Organic Reagent Filtration - Processes chemical solutions and solvent mixtures for pharmaceutical manufacturing and quality control applications
• Environmental Extract Processing - Filters soil and water extracts in non-aqueous solvents for contaminant analysis in monitoring programs
• Polymer Solution Clarification - Removes particulates from polymer solutions and resin preparations for materials science research applications
• Paint and Coating Analysis - Filters organic-based formulations for particle size analysis in industrial quality control testing
