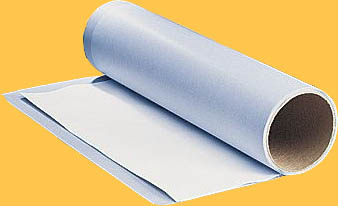

Thumbnail Filmstrip of Oleophobic & Hydrophobic PTFE 0.22 um Roll Membrane,width 260mm x 3 Meters Long Images
| Pore size | .22 um |
Roll width |
260mm |
| Roll length | 3, 6, 9 and 100 meter length options |
| Thickness | 100 - 200 um |
| Air Flowrate @10kPa | ≥1.5 mL/min mm2 |
| Water Resistance | 0.15 MPa, 1h |
| Oil Rating | ≥6 (According to AATCC118: Oil Repellency: Hydrocarbon Resistance Test) |
| Retention rating @ 0.5 μm | 99.99% |
| Bacterial endotoxin | NA |
Description:
The PTFE 0.22um membrane is designed for gas filtration and vent application with bacterial
removal requirement. PTFE is laminated on a PET nonwoven support, which provides a
superior strength for handling and assembling, as well as easy welding. Oleophobic treatment
makes it compatible with wide range of organic solvents, oil and other liquid with low surface
tension.
Applications:
IV Infusion filter
Venting
Waterproof
Oil barrier
Air and gas filtration
Sealing :
Ultrasonic
Heat
Mechanical
Adhesive
Feature and Benefit :
Easily die cut
Easily customized for unusual shapes
Exceptional mechanical strength
Unsurpassed particle retention rate for air and gas filtration
Bacterial retention
- Dimensions
- 260mm x 3m
- Material
- Polytetrafluoroethylene (PTFE)
- Pore Size (µm)
- 0.22
- Sterility
- Nonsterile
- Wetability
- Hydrophobic
