Tisch

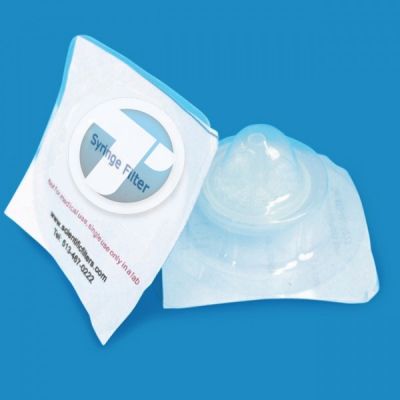

PTFE Syringe Filters, 0.22um, 30mm, Luer-Lok/Luer Slip, Sterile, 100/Pk SKU: SF18323

Polytetrafluoroethylene (PTFE) Syringe Filters - SF18323

When you need to remove bacteria from aggressive solvents and corrosive reagents, you need both sterile-grade filtration and broad chemical resistance. These 0.22µm PTFE filters handle everything from strong acids to halogenated organics while removing bacteria from non-aqueous solutions. The large 30mm diameter with 4.9cm² filtration area processes high-volume samples efficiently, and pre-sterilized packaging means contamination-free handling right out of the package. Polypropylene housing withstands pressures up to 87psi across demanding chemical applications.

Key Polytetrafluoroethylene (PTFE) Membrane Characteristics

• Hydrophobic membrane design provides sterile filtration of organic solvents, acids, and bases without degradation
• Sterile-grade 0.22µm pore size removes bacteria and microorganisms from non-aqueous solutions
• Pre-sterilized by gamma irradiation eliminates preparation steps for critical contamination-free applications
• Broad chemical resistance from strong carbon-fluorine bonds withstands aggressive solvents and reagents
• Membrane thickness of 80-140µm optimizes flow characteristics while maintaining sterility assurance levels

Key Construction Characteristics

• Polypropylene housing provides broad chemical compatibility with organic and inorganic solvent systems
• Large 30mm diameter with 4.9cm² filtration area enables rapid processing of high-volume sterile samples
• Holdup volume of 100µl minimizes sample loss while maintaining practical handling for routine applications
• Luer-Lok/Luer Slip dual connection system ensures secure attachment to various syringe sizes

Pre-sterilized packaging means you can start filtering immediately without autoclaving preparation, saving time when processing multiple samples. The large 4.9cm² filtration area handles high-volume applications efficiently while maintaining bacterial retention, and you can process samples at temperatures up to 60°C without membrane degradation. The 17.4psi bubble point confirms consistent pore structure across production lots for reproducible results in your sterile filtration protocols.

For more information about chemical and material compatibility, please review our Chemical Compatibility Chart.

Bubble Point (psi)

17.4(absolute ethyl alcohol ）

Connection Type

Luer-Lok/ Luer Slip

Construction

PP

Diameter

30mm

Filtration Area

4.9cm²

Flow Rate

29.5ml

Holdup Volume

100μL

Material

Polytetrafluoroethylene (PTFE)

Maximum Operating Pressure

87psi

Maximum Operating Temperature (°C)

60°C

Membrane Thickness (µm)

80-140μm

Pack Count

100

Pore Size (µm)

0.22

Sterility

Sterile

Volume Throughput (ml)

120ml

Weight

1.40

Wetability

Hydrophobic

• Large-Volume Sterile Filtration - Removes bacteria from bulk pharmaceutical solutions and heat-sensitive biological reagents requiring sterile processing
• Aggressive Solvent Sterilization - Filters strong acids, bases, and halogenated solvents where chemical resistance and bacterial removal are both required
• HPLC Mobile Phase Preparation - Removes bacteria from organic mobile phases, protecting chromatography columns from microbial contamination and fouling
• Cell Culture Media Sterilization - Filters heat-sensitive growth factors and supplements that cannot withstand autoclave temperatures for tissue culture
• Pharmaceutical Manufacturing - Produces bacteria-free drug solutions meeting sterility requirements in non-aqueous formulation development
• Environmental Sample Processing - Removes microbial contamination from organic solvent extracts before instrumental analysis in environmental testing
