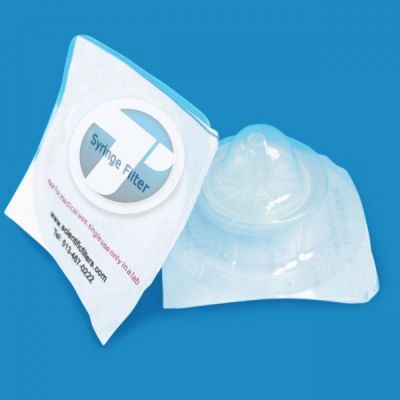

PVDF Syringe Filters w/ 3 Pre-Filters, 0.45 um, 25mm, Sterile, 100/Pk SKU: SF18310

Polyvinylidene Fluoride (PVDF) Syringe Filters - SF18310

Laboratories processing heavily particulate-laden organic samples often struggle with premature membrane fouling. Hydrophobic PVDF syringe filters with a 0.45 µm pore size and triple-layer prefiltration provide a robust solution. The advanced design combines glass fiber and polypropylene stages to capture coarse debris progressively. Progressive filtration significantly extends the operational life of the final clarification membrane. Users must pre-wet the unit with alcohol for aqueous fluids, though it processes organic solvents immediately. The 25mm housing supports high flow rates for efficient batch processing. Validated sterile packaging ensures contamination-free handling during critical clarification steps.

Key PVDF Membrane Characteristics

• Hydrophobic surface chemistry requires pre-wetting with alcohol before processing aqueous samples but allows direct filtration of organic solvents
• 0.45 µm pore size delivers reliable particle removal and clarification for heavily loaded samples without bacterial retention
• Exceptional chemical resistance maintains compatibility with aggressive organic solvents including chlorinated compounds and aromatic hydrocarbons
• High flow rates enable the rapid processing of viscous or particulate-laden organic samples to improve laboratory efficiency
• Broad solvent resistance ensures structural integrity across alcohols, ketones, and acids for consistent performance in challenging applications

Key Construction Characteristics

• Triple-layer prefilter system captures coarse particulates progressively to dramatically extend membrane lifetime in challenging samples
• 100 µL holdup volume minimizes loss of valuable pharmaceutical compounds and biological materials optimizing yield
• Polypropylene housing delivers structural integrity to 87 psi maximum operating pressure with thermal stability to 60°C
• Dual Luer-Lok and Luer-Slip connections accommodate standard syringes without adapters streamlining aseptic transfer procedures

Maximize your laboratory productivity with a filtration solution engineered for the most difficult solvent matrices. You can process viscous or dirty organic fluids reliably without frequent filter changes. The integrated triple-layer prefilter protects the 0.45 µm membrane from premature clogging by larger particles. Secure Luer-Lok connections prevent hazardous leakage when applying pressure to resistant samples. The hydrophobic chemistry offers exceptional durability against aggressive acids, alcohols, and chlorinated solvents. Rely on this robust design to maintain high throughput in pharmaceutical development and chemical analysis. Consistent particle removal protects sensitive chromatography columns and extends the life of analytical instrumentation.

For more information about chemical and material compatibility, please review our Chemical Compatibility Chart.

Bubble Point (psi)

5.8psi

Connection Type

Luer-Lok/ Luer Slip

Diameter

25mm

Filtration Area

4.08cm²

Flow Rate

32ml

Holdup Volume

100μL

Material

Polyvinylidene Fluoride (PVDF)

Maximum Operating Pressure

87psi

Maximum Operating Temperature (°C)

60°C

Membrane Thickness (µm)

100-130μm

Pack Count

100

Pore Size (µm)

0.45

Prefilter (Yes/No)

Yes

Prefilter Material

GF+GF+PP

Sterility

Sterile

Volume Throughput (ml)

50ml

Weight

0.88

Wetability

Hydrophobic

• HPLC Mobile Phase Clarification - Remove particles from organic solvents with extended filter life for high-particulate samples
• Environmental Extract Processing - Clarify soil and sediment extracts in organic solvents requiring particulate removal for monitoring
• Pharmaceutical QC Testing - Filter particulate-laden drug formulations and organic extracts for chromatography in QC laboratories
• Viscous Sample Clarification - Process challenging pharmaceutical samples requiring extended membrane lifetime and high dirt-loading capacity
• Organic Reagent Filtration - Clarify chemical solutions and solvent mixtures with high particulate content in pharmaceutical manufacturing
• Industrial Sample Preparation - Filter viscous polymer solutions and resin formulations requiring contamination-free handling in materials testing
