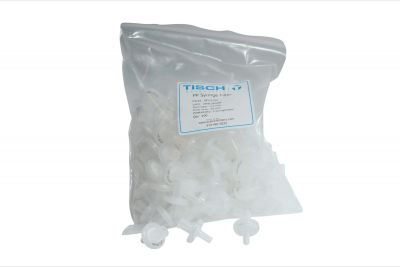

Polypropylene Syringe Filters, 20.0um, 13mm, Luer-Lok/Luer Slip, Nonsterile, 100/Pk SKU: SF13200

Polypropylene (PP) Syringe Filters - SF13200

Quality control and analytical testing laboratories demand economical coarse prefiltration that delivers 20.0 µm particle retention with 13mm compact diameter construction and 20 µL minimal holdup volume. This capability proves essential for small-volume processing. Advanced hydrophobic polypropylene membrane technology with 1.09 cm² filtration area provides exceptional 150 ml flow rate across compatible aqueous and alcohol-based systems where laboratories require cost-effective large particle removal.

Key Polypropylene Membrane Characteristics

• Hydrophobic Surface Chemistry - Requires simple alcohol pre-wetting to achieve immediate aqueous compatibility, enabling flexible processing across diverse laboratory applications
• Economical Prefiltration Solution - Delivers reliable 20.0 µm particle retention at significantly lower cost than premium membrane alternatives for routine applications
• Coarse Particle Retention - Removes large particulates, protecting downstream fine filters from premature fouling and extending overall filtration system lifetime
• Selective Chemical Compatibility - Works effectively with aqueous solutions and alcohols for stable operation in compatible solvent systems
• 60°C Thermal Stability - Maintains structural integrity throughout moderate temperature processing conditions, supporting diverse analytical applications

Key Construction Characteristics

• 20 µL Minimal Holdup Volume - Maximizes recovery of valuable samples through optimized dead volume design, preserving precious analytical specimens
• Polypropylene Housing with 60°C Rating - Provides the chemical resistance and thermal stability you need for dependable laboratory operations
• Dual Luer-Lok/Luer Slip Connection - Offers attachment flexibility that works seamlessly with virtually any syringe type in your laboratory equipment setup
• 1.09 cm² Filtration Area - Delivers exceptional 150 ml flow rate supporting high-throughput processing of small-volume samples without compromising prefiltration performance

Engineered to overcome your small-volume prefiltration challenges where exceptional flow rates and economical operation cannot compromise downstream filter protection. The 20.0 µm membrane captures coarse particulates while 150 ml flow rate accelerates processing. Your laboratory maintains equipment protection with validated particle retention, broad compatibility with aqueous and alcohol-based systems, and a 20 µL holdup design preserving precious samples across routine analytical testing and quality control applications.

For more information about chemical and material compatibility, please review our Chemical Compatibility Chart.

Burst Pressure (psi)

87psi.

Connection Type

Luer-Lok/ Luer Slip

Construction

Polypropylene (PP)

Diameter

13mm

Filtration Area

1.09cm²

Flow Rate

150ml

Holdup Volume

20μL

Material

Polypropylene (PP)

Maximum Operating Pressure

87psi

Maximum Operating Temperature (°C)

60°C

Membrane Thickness (µm)

140-260μm

Pack Count

100

Pore Size (µm)

20

Prefilter (Yes/No)

No

Sterility

Nonsterile

Sterilization

Autoclave 121°C for 30min/ gamma 25kGy

Volume Throughput (ml)

10ml

Weight

0.19

Wetability

Hydrophobic

• Small-Volume Sample Prefiltration - Removes large particulates from 1-10 ml solutions, protecting fine filters and extending lifetime
• Cell Culture Clarification - Prefilters cell suspensions, removing large debris before sterile filtration in research workflows
• Environmental Sample Preparation - Processes small-volume water samples, removing gross debris before fine filtration for analysis
• Polymer Solution Processing - Removes undissolved material from small batches, protecting analytical equipment from fouling
• Quality Control Testing - Prefilters routine small-batch samples for manufacturing specification testing and analysis
• Educational Laboratory Applications - Provides economical prefiltration for teaching environments and routine testing workflows
