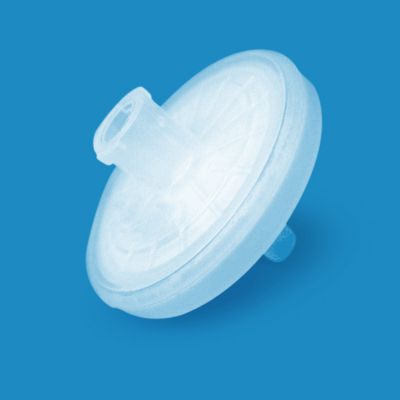

PP Syringe Filters, 20.0um, 25mm OD, Luer-Lok/Luer Slip, 100pc pack SKU: SPEC20218

Polypropylene (PP) Syringe Filters - SPEC20218

Featuring 20.0 µm hydrophobic polypropylene membrane technology with 25mm standard diameter construction, delivering an exceptional 300 ml flow rate for high-throughput coarse prefiltration across aqueous and compatible solvent applications. This combination enables rapid processing. Advanced 4.08 cm² filtration area with 100 µL holdup volume supports routine analytical workflows where laboratories require economical large particle removal protecting downstream fine filters.

Key Polypropylene Membrane Characteristics

• Hydrophobic Surface Chemistry - Requires simple alcohol pre-wetting to achieve immediate aqueous compatibility, enabling flexible processing across diverse laboratory applications
• Economical Prefiltration Solution - Delivers reliable 20.0 µm particle retention at significantly lower cost than premium membrane alternatives for routine applications
• Coarse Particle Retention - Removes large particulates, protecting downstream fine filters from premature fouling and extending overall filtration system lifetime
• Selective Chemical Compatibility - Works effectively with aqueous solutions and alcohols while avoiding esters and aromatic hydrocarbons for stable operation
• 60°C Thermal Stability - Maintains structural integrity throughout moderate temperature processing conditions, supporting diverse analytical applications

Key Construction Characteristics

• 100 µL Optimized Holdup Volume - Minimizes sample loss through controlled dead volume design, maximizing recovery in standard analytical workflows
• Polypropylene Housing with 60°C Rating - Provides the chemical resistance and thermal stability you need for dependable laboratory operations
• Dual Luer-Lok/Luer Slip Connection - Offers attachment flexibility that works seamlessly with virtually any syringe type in your laboratory equipment setup
• 4.08 cm² Filtration Area - Delivers exceptional 300 ml flow rate supporting high-throughput processing without compromising prefiltration performance

Built to support your high-throughput prefiltration workflows where exceptional flow rates and economical operation cannot compromise downstream filter protection. The 20.0 µm membrane captures coarse particulates while 300 ml flow rate accelerates processing. Your laboratory maintains equipment protection with validated particle retention, broad compatibility with aqueous and alcohol-based systems, and optimized holdup design supporting the routine processing volumes essential to protecting downstream filters.

For more information about chemical and material compatibility, please review our Chemical Compatibility Chart.

Burst Pressure (psi)

87psi.

Connection Type

Luer-Lok/ Luer Slip

Construction

Polypropylene (PP)

Diameter

25mm

Filtration Area

4.08cm²

Flow Rate

300ml

Holdup Volume

100μL

Incompatibility

Esters, hexane, toluene, benzene, dichloromenthan

Material

Polypropylene (PP)

Maximum Operating Pressure

87psi

Maximum Operating Temperature (°C)

60°C

Membrane Thickness (µm)

140-260μm

Pack Count

100

Pore Size (µm)

20

Prefilter (Yes/No)

No

Sterility

Nonsterile

Sterilization

Autoclave 121°C for 30min/ gamma 25kGy

Volume Throughput (ml)

50ml

Weight

0.52

Wetability

Hydrophobic

• Viscous Sample Prefiltration - Removes large particulates from thick solutions, protecting fine filters and extending operational lifetime
• Environmental Sample Preparation - Processes water samples, removing gross debris before fine filtration for contaminant analysis
• Cell Culture Clarification - Removes large debris from cell suspensions before sterile filtration in biopharmaceutical workflows
• Industrial Process Monitoring - Processes production samples for routine quality control and manufacturing specification testing
• Polymer Solution Processing - Removes undissolved material from viscous polymers, protecting analytical equipment from fouling
• Aqueous Sample Protection - Prefilters particulate-laden solutions, extending downstream filter lifetime and reducing replacement costs
