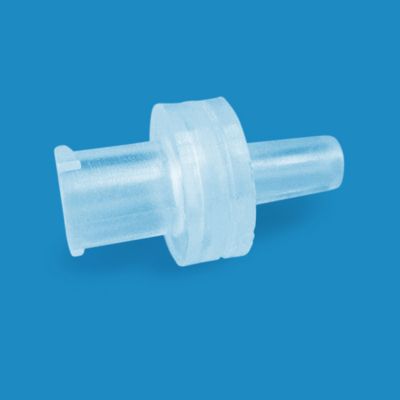

Tisch Scientific Nylon Syringe Filters, 0.1 µm, 4 mm, 200/Pk - SF17501
Tisch Scientific vets its filtration partners carefully, favoring those with a consistent record of dependable output. A sterilizing-grade syringe filter carries manufacturer bacterial retention testing built into the design, giving analysts documented sterile-grade performance without repeating that testing in-house for the format. Nylon provides sterile-grade retention at sub-micron pore size while withstanding elevated differential pressures and wicks moisture into the disc on contact. Polyolefin construction sheds virtually no extractable material into the sample and stands firm against aqueous acids, bases, and alcohols during regular handling. Where bacterial contamination must stay out of the sample, manufacturer-tested retention keeps the instrument and downstream assay protected without a housing to maintain or clean.
Membrane Characteristics
- Polar amide backbone gives high native affinity for nucleic acids
- Resonance-stabilized amide bonds anchor nylon's resistance to alkaline hydrolysis
- Amorphous-crystalline nylon blend composition doubles membrane burst strength over homopolymer nylon
- Saturation moisture uptake reaches up to 8% by resin weight
- Compatible with most HPLC mobile phases for sample clarification
Housing Characteristics
- Plasticizer-free polyolefin construction keeps the fluid path clean
- The seal formed against the membrane blocks bypass at rated operating pressure
- Standardized luer connection geometry provides secure engagement with standard syringe tips
- Resists stress cracking from aqueous salt and buffer solutions
A column clogging mid-run from unfiltered sample can cost you the rest of your analytical day. Pre-injection filtration protects the resolution your methods depend on so your retention times and peak shapes stay consistent. Request available pack sizes and lead times across this filtration line's membrane options from the Tisch Scientific team.
Sterilization Guidance
Standard autoclave cycles at 121°C for 30 minutes prepare the device for sterile workflows.
For more information about chemical compatibility, please review our Chemical Compatibility Chart.
- Bubble Point (psi)
- 47.5psi
- Burst Pressure (psi)
- 87psi
- Connection Type
- Luer-Lok/Luer Slip
- Construction
- Polypropylene (PP)
- Diameter
- 4mm
- Filtration Area
- 0.125cm²
- Flow Rate
- 0.1ml
- Holdup Volume
- 1ul
- Incompatibility
- Acids, agressive organics, protein
- Material
- Nylon
- Maximum Operating Pressure
- 87psi
- Maximum Operating Temperature (°C)
- 60°C
- Membrane Thickness (µm)
- 90-120µm
- Pack Count
- 200
- Pore Size (µm)
- 0.1
- Prefilter (Yes/No)
- Yes
- Prefilter Material
- PP
- Sterility
- Nonsterile
- Sterilization
- Autoclave: 121° C for 30 minutes/ Gamma: 5kg, for 8 hours
- Volume Throughput (ml)
- 1ml
- Weight
- 0.24
- Wettability
- Hydrophilic
- Veterinary Drug Residue Testing - Clarifies meat, milk, and egg extracts ahead of LC-MS/MS screening for drug residues in food-safety laboratories.
- HPLC Sample Prep - Clarifies mixed aqueous and organic solvents to ensure stable baselines and protect chromatography columns from clogging.
- Chemical Analysis - Withstands aggressive bases and alcohols, ideal for tough chemical compatibility filtration challenges in routine analysis.
- Column Protection - Extends the life of analytical columns by reliably removing micro-particulates from aqueous mobile phases in HPLC.
- Mining Process Waters - Clarifies process water samples from hydrometallurgical operations, removing solids ahead of ICP-MS trace metal quantitation.
- Drinking Water Analysis - Clarifies tap and source water samples ahead of metals, nitrate, and trace-contaminant compliance testing.
